Performance Details

This section contains more detail about the predicted performance of the link. The data can either be displayed in chart or tabular form.

Charts

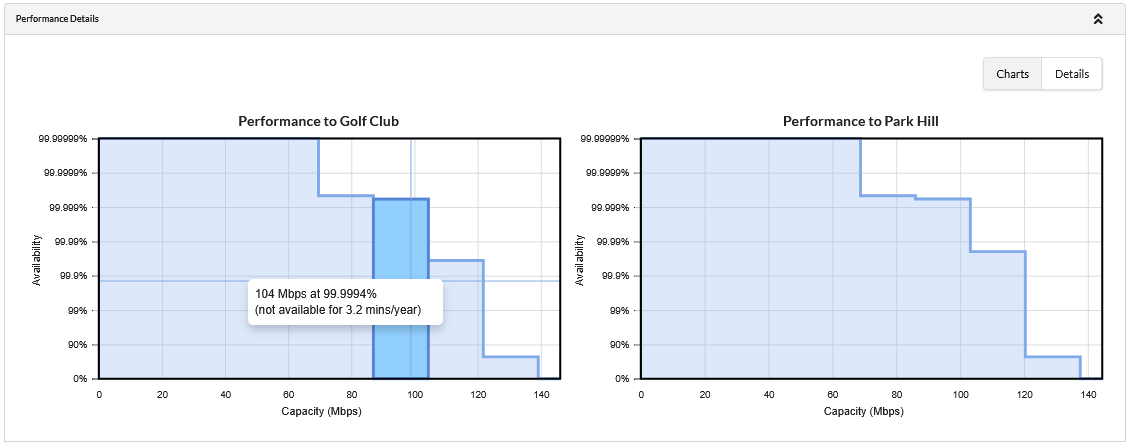

The following charts show the variability in percentage of time availability with capacity, for each direction in the link. When the cursor is moved over the chart the area is highlighted in blue and the chart is annotated with throughput, availability (given as a percentage) and unavailability (given as a unit of time). The throughput given is the maximum throughput at that availability.

_images/performance_charts.png

Performance Charts

When Dual Payload is enabled the availability shown is the sum of Receive time in Mode for all single and dual payloads with a Max IP Throughput greater than or equal to the given capacity level.

If ePMP, PTP 550, PTP 820 or PTP 850 are selected the capacity shown in both the charts and the table is for the given frame size selected.

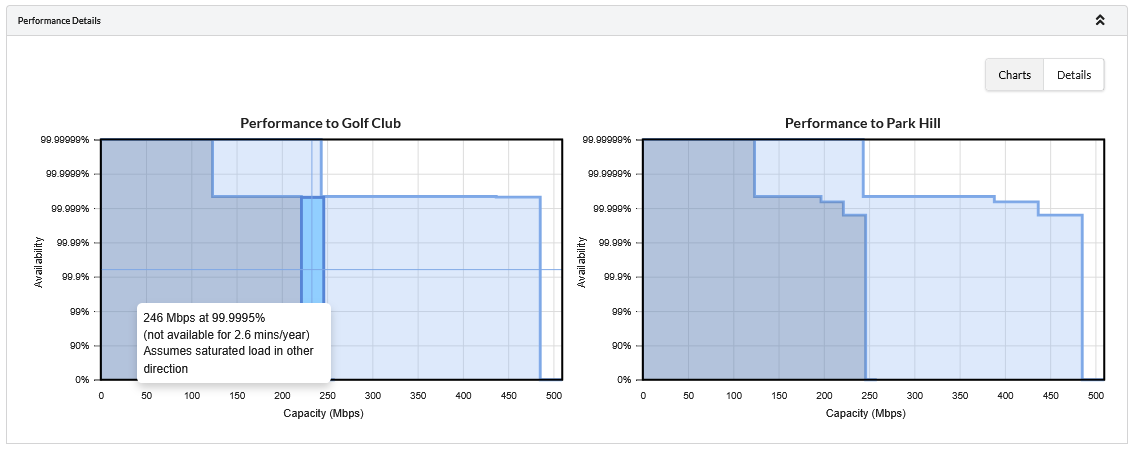

If ePMP Enhanced PTP Mode or Adaptive Symmetry is selected the capacity achieved in each direction of the link is variable, depending on the load presented. The charts cannot predict the load for each direction of the link and therefore present data for two conditions, see Performance Charts for Adaptive Symmetry.

  • When traffic is only being sent in one direction the other direction has no load on it and a peak throughput can be achieved in a single direction at a given time.

  • When one direction of the link is saturated the maximum throughput in the other direction balances that load and provides a symmetrical throughput in each direction, for identical link conditions. In this case the values shown in the chart correlate with the values shown in the Performance Summary section.

_images/performance_charts_adaptive.png

Performance Charts for Adaptive Symmetry

charts_no_load - high capacity, which can only be achieved in this direction assuming there is no load in the other direction.

charts_saturated - symmetrical capacity, which can be achieved assuming a saturated load in the other direction. This capacity can be achieved simultaneously with the equivalent load shown on the opposite direction of the link.

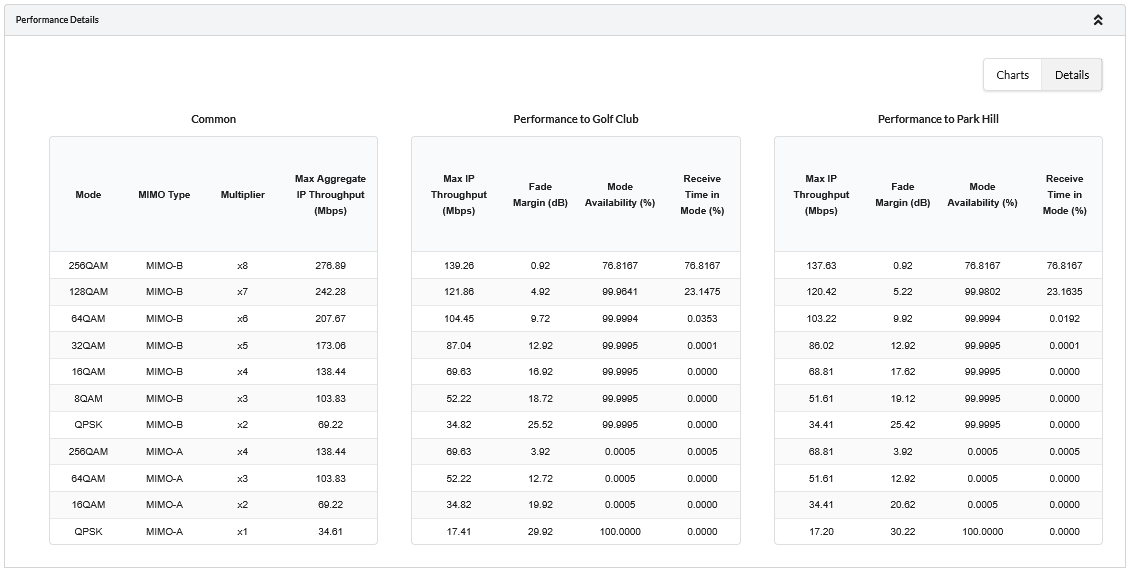

Table

_images/performance_details.png

Performance Details

For 2+0 Link Types, the predicted performances of the main (Aggregate) path and individual (Link A and Link B) paths are displayed in tabs. Click on the respective tab to see the performance details of the path.

note

The same tab is shown for both Performance Summary and Performance Details

_images/performance_details_2+0.png

Performance Details 2+0

Common Details

MCS: (ePMP and 60 GHz cnWave Only) The Modulation Coding Scheme Number

Mode: The modulation technique used.

Code Rate: The code rate for the specified Mode (not available for PTP 450 family, PTP 820 or PTP 850).

Profile: (PTP 820 and PTP 850 Only) The profile number of the modulation mode.

MIMO Type: (PTP 450 and 450i Only) The MIMO method used.

Payloads: (ePMP, PTP 550, 670 or 700)Indicates whether the payload mode is Single or Dual.

Multiplier: (PTP 450 and 450i Only) Indicates the relative capacity capability of the different modes.

Max. Aggregate IP Throughput (Mbps): The maximum aggregate throughput achievable (sum of both directions). This field is automatically adjusted for the range of the link being studied.

E1/T1 Carried: This row is only displayed if the equipment is PTP 670 or PTP 820G and one or more E1 or T1 channels have been selected. It indicates the number of E1 or T1 channels supported in each modulation mode. For PTP 670 it is set to “Timing” for those modulation modes that are below the Lowest Telecom Mode selected in the Equipment section, for more information, see Optimizing E1 or T1 Latency.

Performance to each end

Max. IP Throughput (Mbps): The maximum user throughput achievable. For modulation modes below Lowest Ethernet Mode this value will be set to zero and no contribution from these modulation modes will be included in the Mean IP Predicted.

Fade Margin (dB): The margin available to each end in the specified Mode.

Mode Availability (%): The percentage of time that the data throughput rate shown for each end will be available.

Receive Time in Mode (%):The percentage of time used to receive data in the specified Mode.

When ePMP ePTP Mode is selected the values shown in the Performance to each end section of the table assume that there is no load in the opposite direction of the link.
